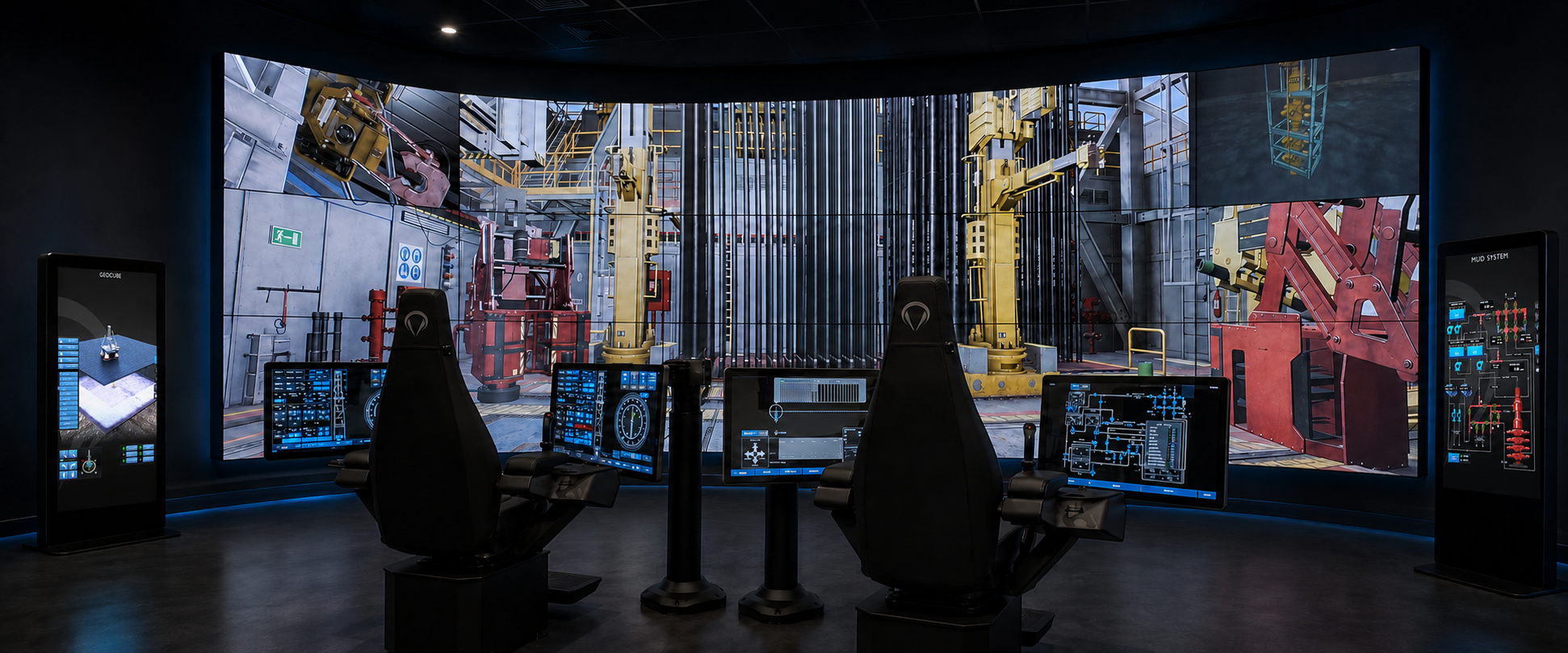

The X1 is not just a simulator. It is a dedicated physical portal to the Endeavor RuntimePhysics™ engine, built for high-fidelity, multi-station environments where crews train exactly as they operate.
UNIFIED SIMULATION CORE
RuntimePhysics™ in action
Real time downhole physics. Synchronized systems. One source of truth.
Unlike fragmented competitor systems, the X1 runs on Endeavor's unified architecture. Operators, engineers, and supervisors work in a synchronized, zero-latency environment.
Physics First
Real time fluid dynamics and downhole modeling.

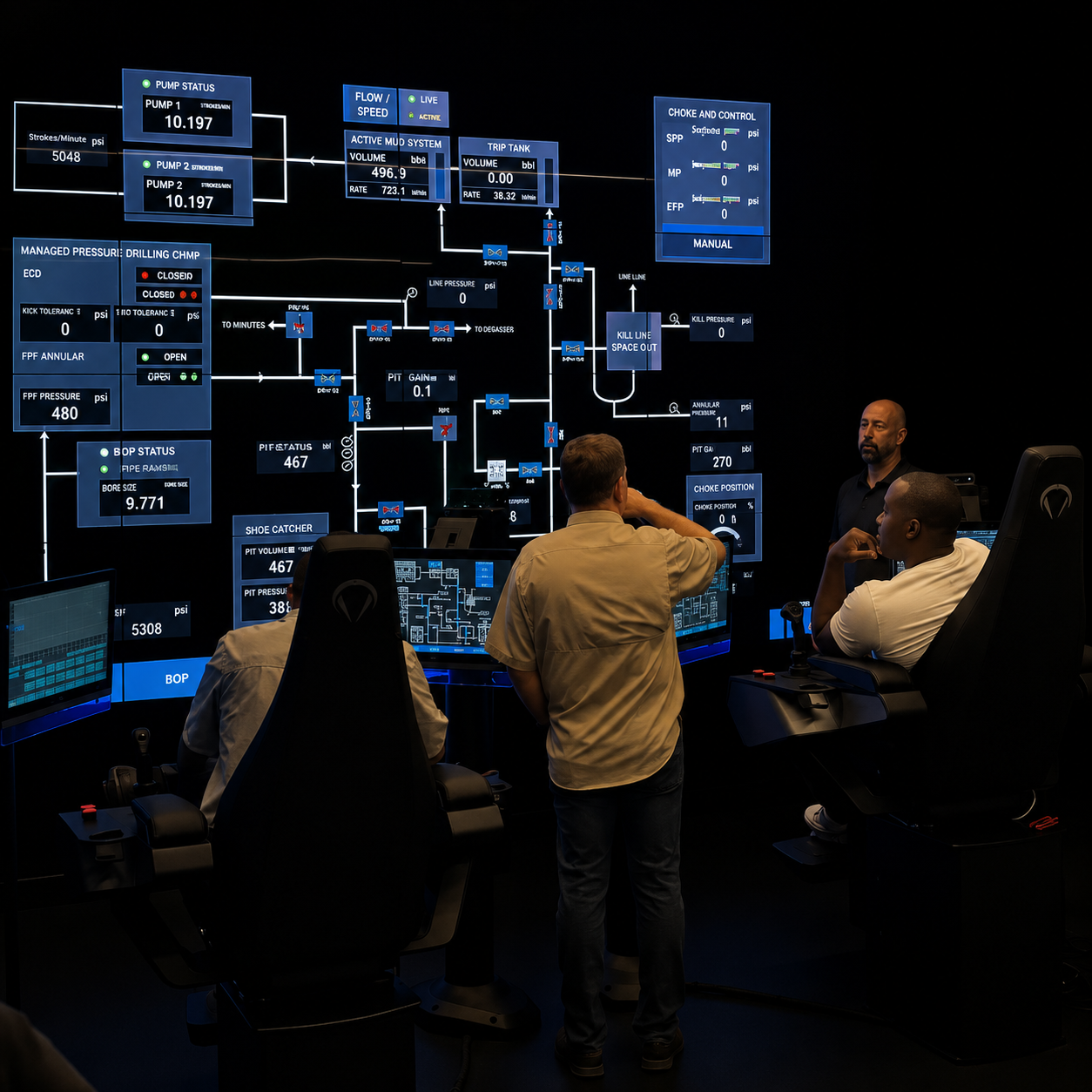

Multi Roles
Train operators simultaneosly on linked consoles.
Hardware Agnostic
Runs every simulation module.
Operational Advantage
Train smarter. Operate safer.
The X1 replicates the physical and cognitive load of high-consequence operations. It bridges the gap between theory and execution, ensuring performance readiness across any domain before live engagement.

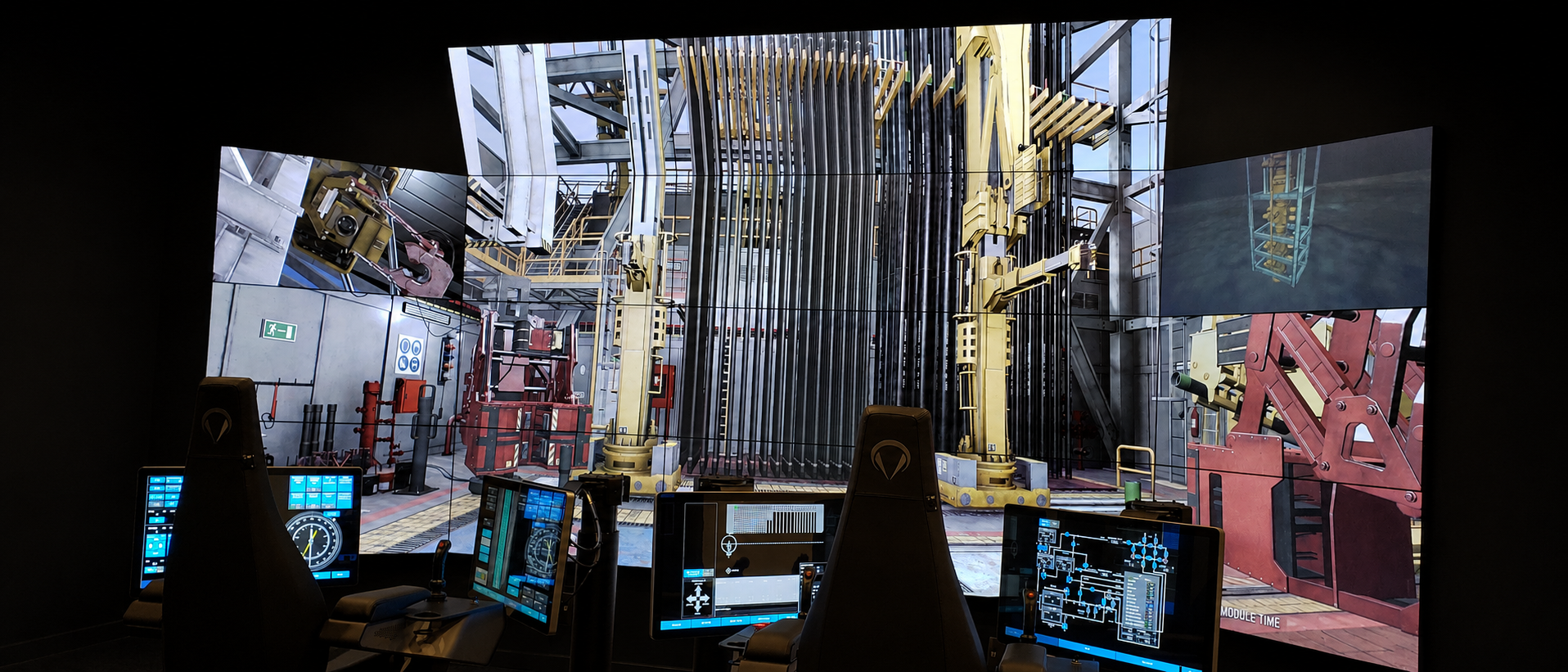

Total Immersion
Customizable video walls.
Haptic Fidelity
Industrial grade joysticks and switches.

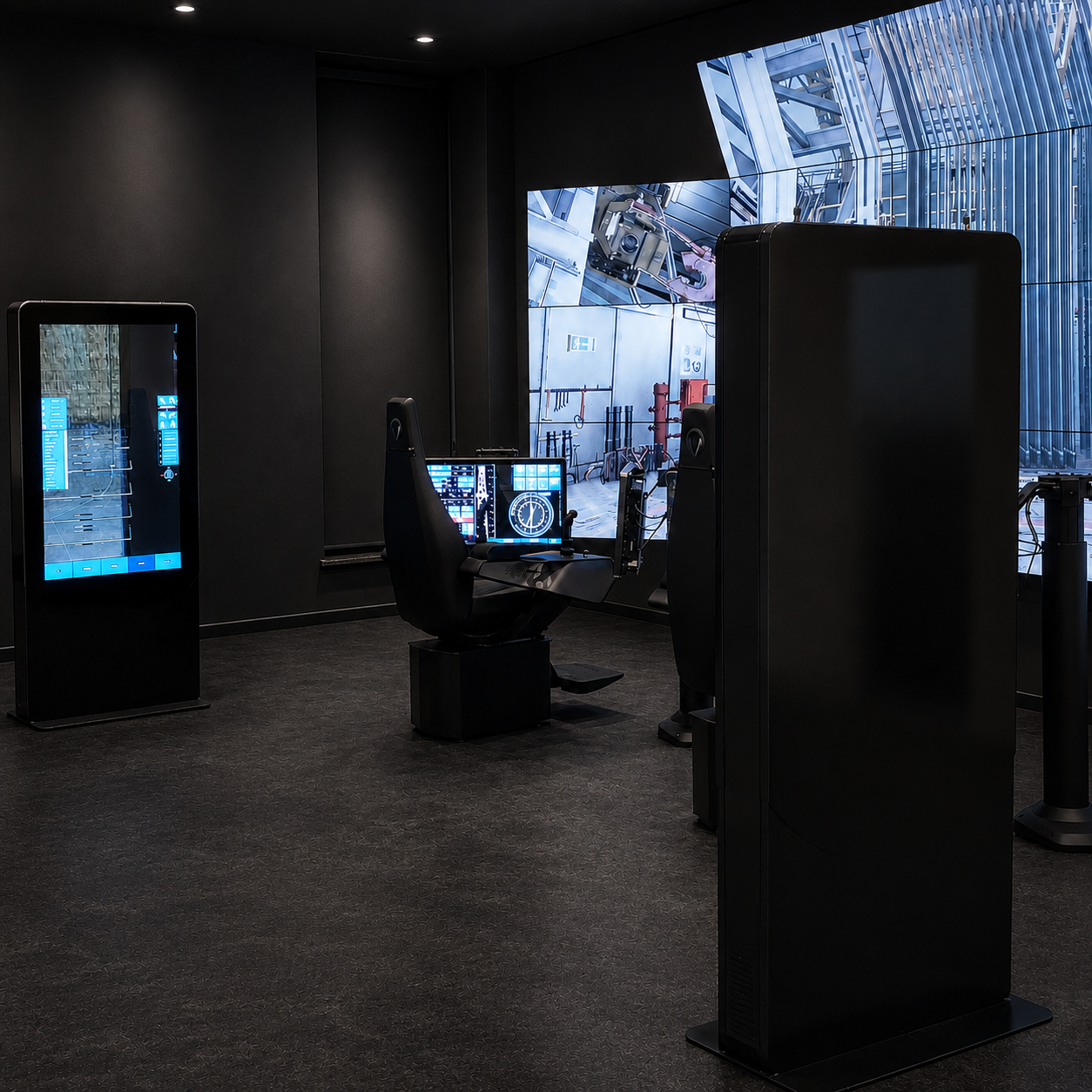

Team Integration
Network multiple X1 devices.
Future Proof
One investment, all future modules.
SPECIFICATIONS
Technical Specifications
Package Configuration
Component
Details
Primary Operator Station
Industrial grade operator chair with integrated armrest controls
Secondary Operator Station
Optional: second operator chair with integrated armrest controls
Visual System
Custom configurations using commercially available LED displays

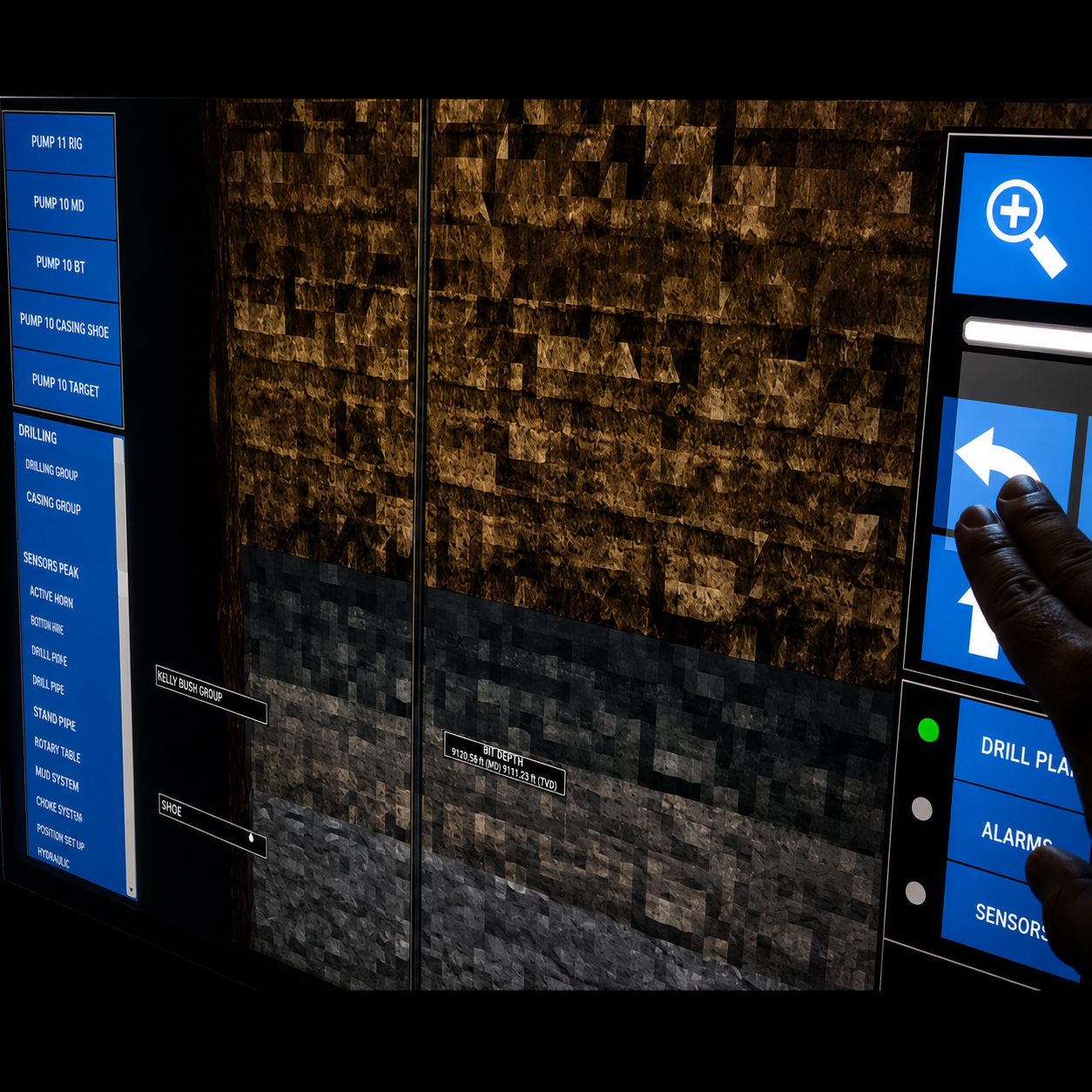

Auxiliary Displays
Interactive 55 or 70 inch free standing touchscreen monitor(s)
Computing Core
Single dedicated high-performance simulation PC
Operator Console (Armrests)
Feature
Specification
Left Armrest
Integrated multi-axis joystick + 10 point touch screen
Right Armrest
Integrated multi-axis joystick + 10 point touch screen
Touch Display Specs
292mm (W) x 201mm (H) | Resolution: 2736 x 1824
Processor
Dedicated Intel Core i7 processor, 128GB SSD per console
Physical Dimensions & Power
Metric
Measurement
Chair Dimensions
1360mm (W) x 1066mm (D) x 1371mm (H)
Weight
45 kg (per chair unit)
Adjustability
35 degree tilt, adjustable headrest, backrest, leg rest
Voltage
100-240V, 50/60Hz (auto sensing power supply)
Operating Temp
0 C to 40 C
Connectivity
IPv4/IPv6 support | 1x 10/100/1G Ethernet
Warranty: 1 year standard. Maintenance contracts available (1 or 3 year commitments).
