ONE PLATFORM

RuntimePhysics™ at the controls

Full enterprise simulation. Hardware built around the operator.

The X2 runs the same full physics engine and simulation library as every supported Endeavor deployment. Any simulator—or the complete library—can run on X2, while the curved display field, dedicated operator controls, and true-to-life audio place the crew inside the operation.

→ Experience RuntimePhysics^TM → See All Deployments

One Runtime Core

Any simulator can run on X2 from one shared runtime-native platform.

Authentic Controls

Multi-axis joysticks, physical switches, twin touchscreens, and an optional choke panel.

Complete Library

Well control, drilling, MPD, wireline, coiled tubing, and intervention on the full RuntimePhysics™ engine.

IMMERSIVE TRAINING

Built around the driller.

The X2 is designed for semi-permanent classrooms and training centers that need deep physical immersion without a full X1 installation. Its motorized chair, retractable monitor arm, four-screen field of view, touch interfaces, and physical controls create a focused operator station. Network multiple units to train complete crews under one instructor.

Operator Environment

Motorized reclining chair with headrest, backrest, leg rest, armrests, and up to 35° of tilt.

Four-Screen Immersion

Three displays create a 5760 × 1080 rig-floor view, with a dedicated 1920 × 1080 mast display.

Physical Controls

Twin multi-axis proportional joysticks, buttons, switches, and integrated touchscreens.

Team Network

Connect multiple X2 stations and instructors inside one synchronized simulation.

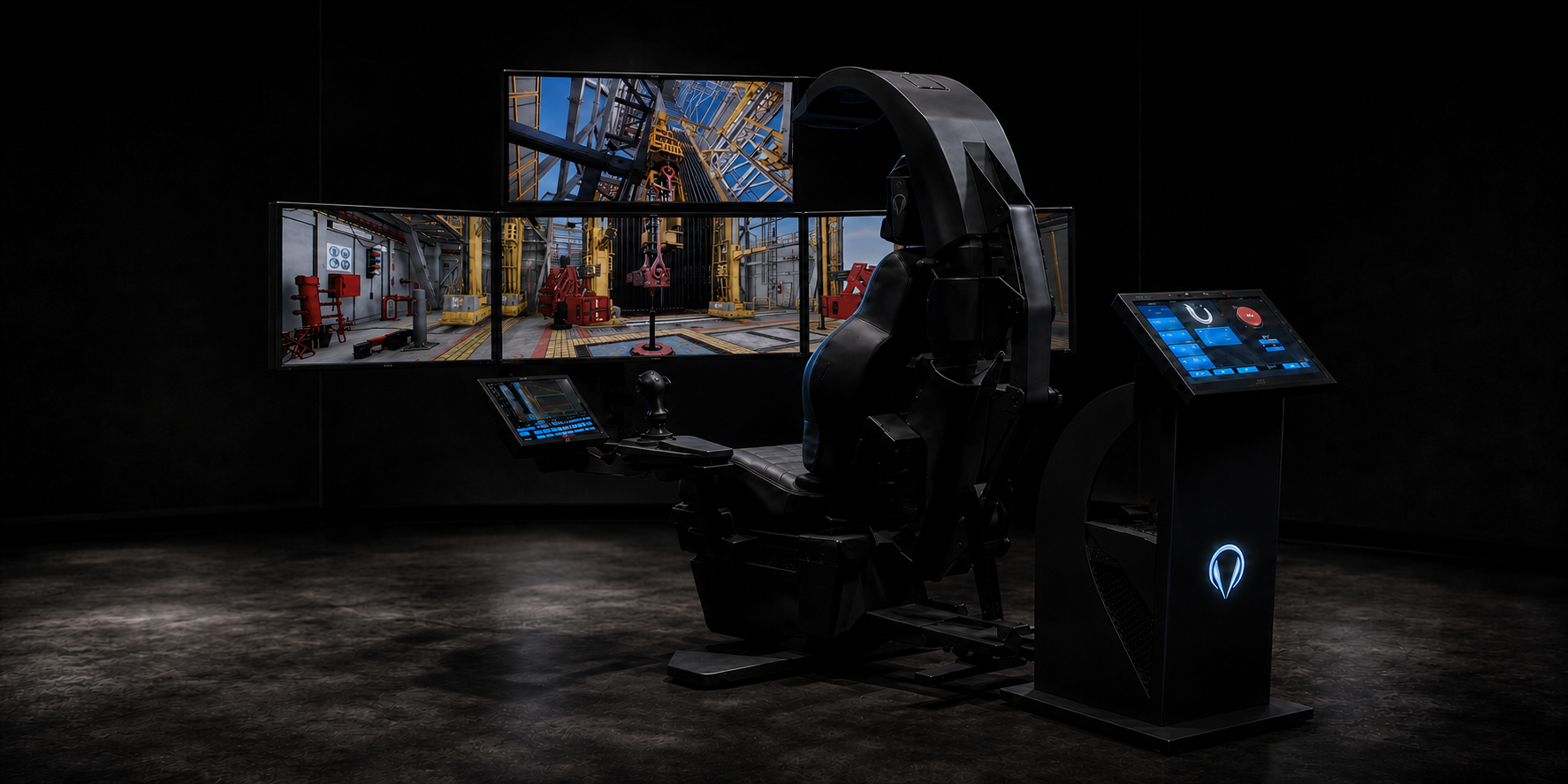

Endeavor X2 four-display immersive monitor configuration showing a semi-submersible rig floor

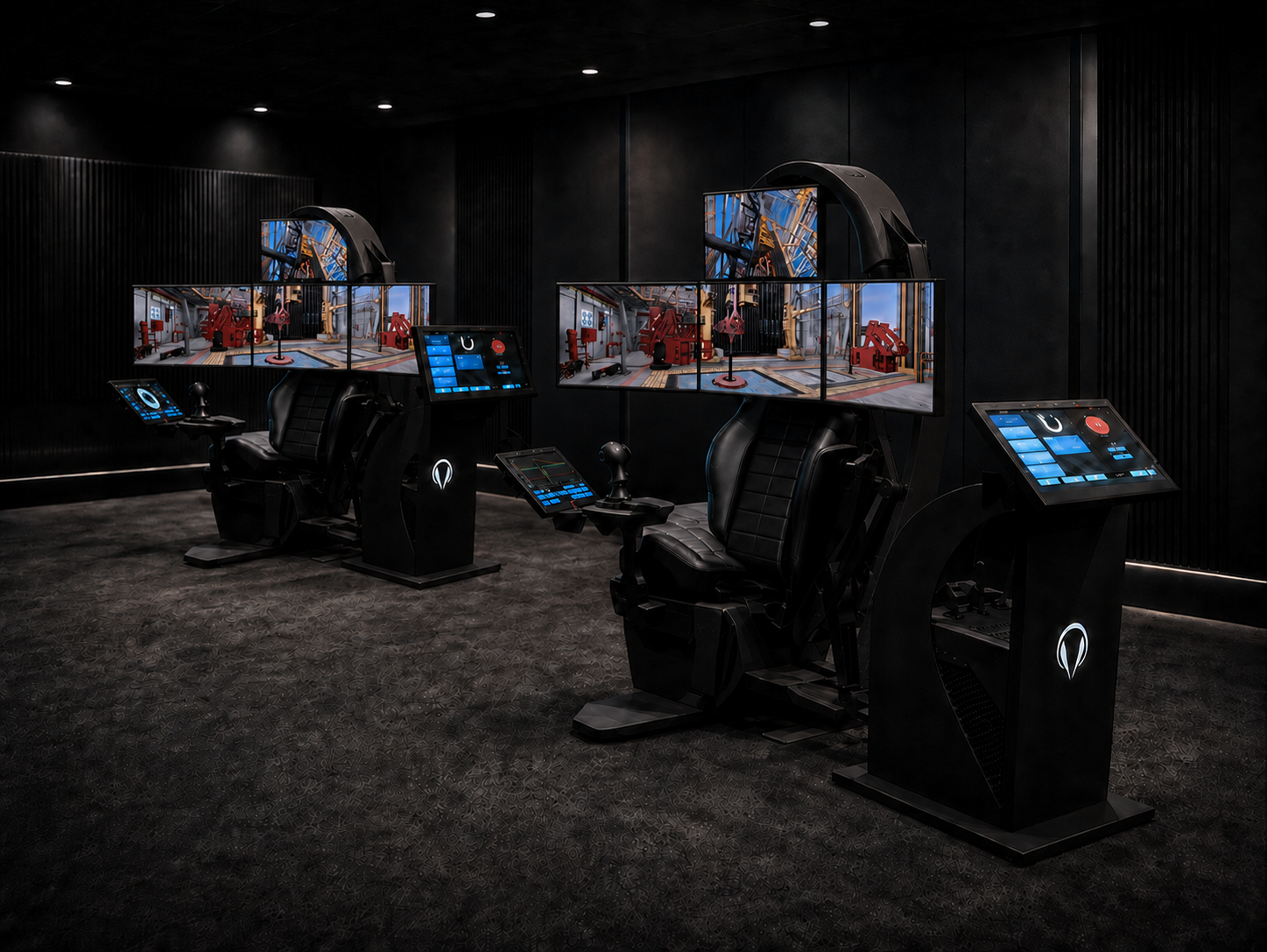

Two networked Endeavor X2 stations with four-display monitor arrays

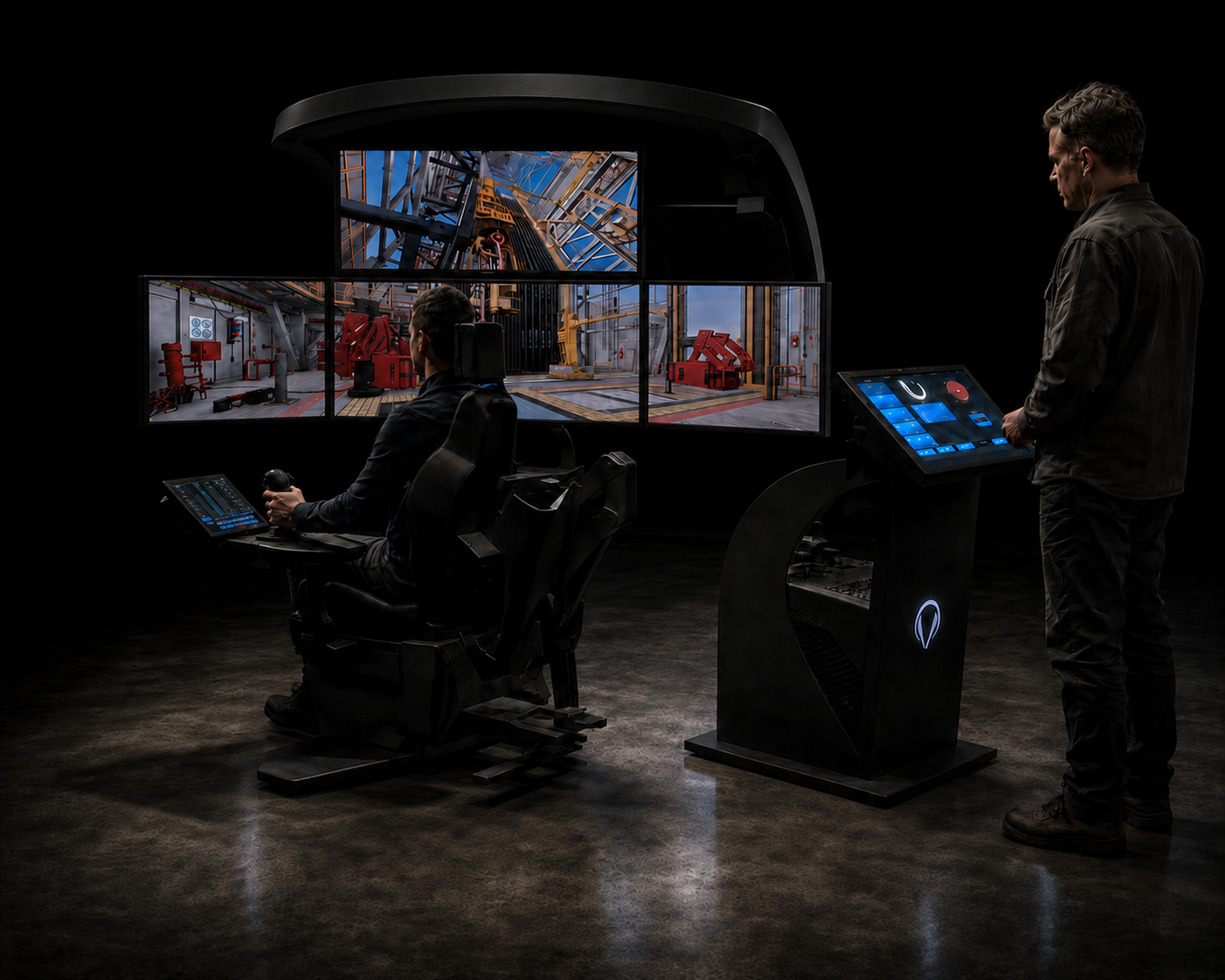

Operator and instructor training with the Endeavor X2 four-display configuration

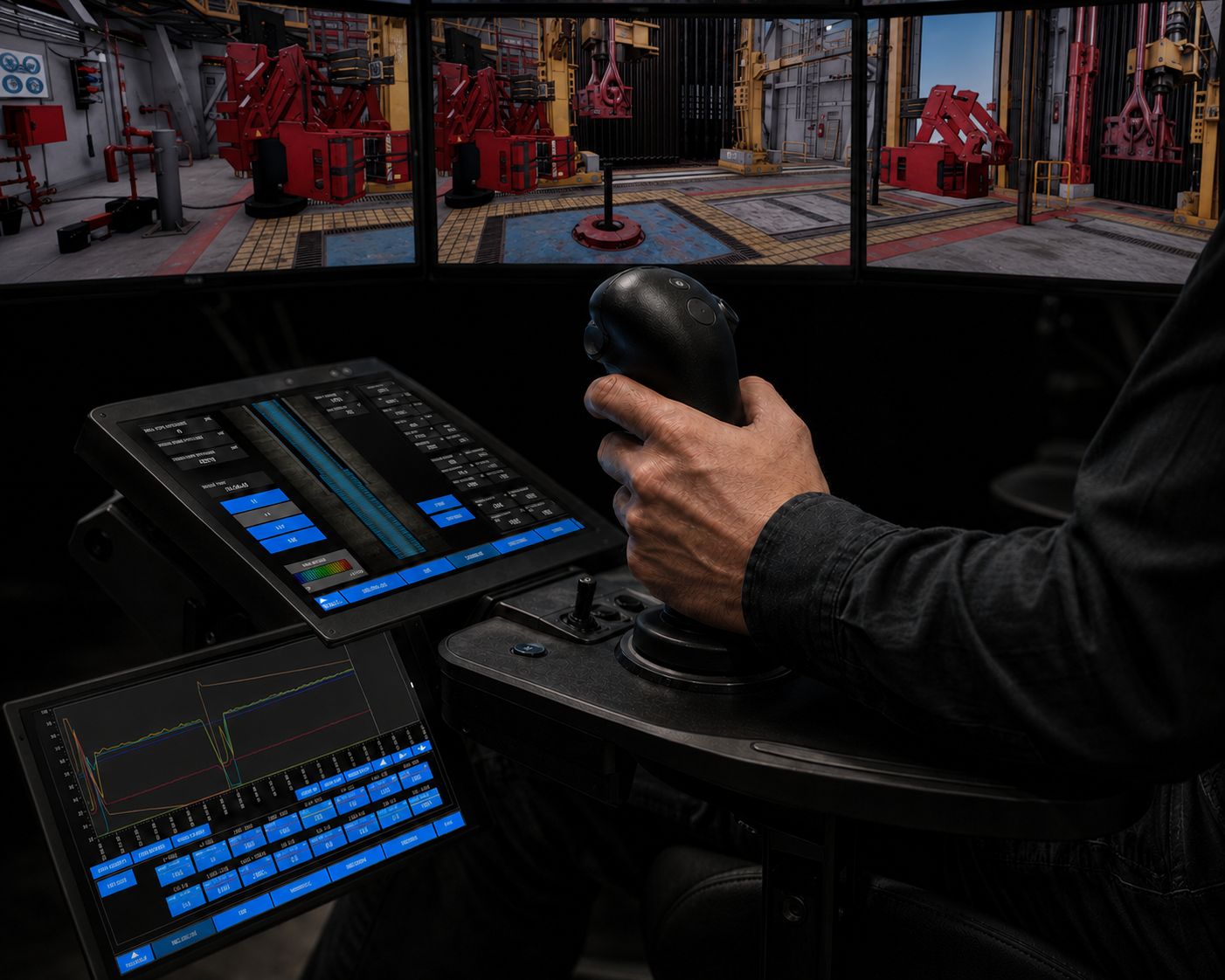

X2 armrest controls beneath the three-screen lower panoramic display row

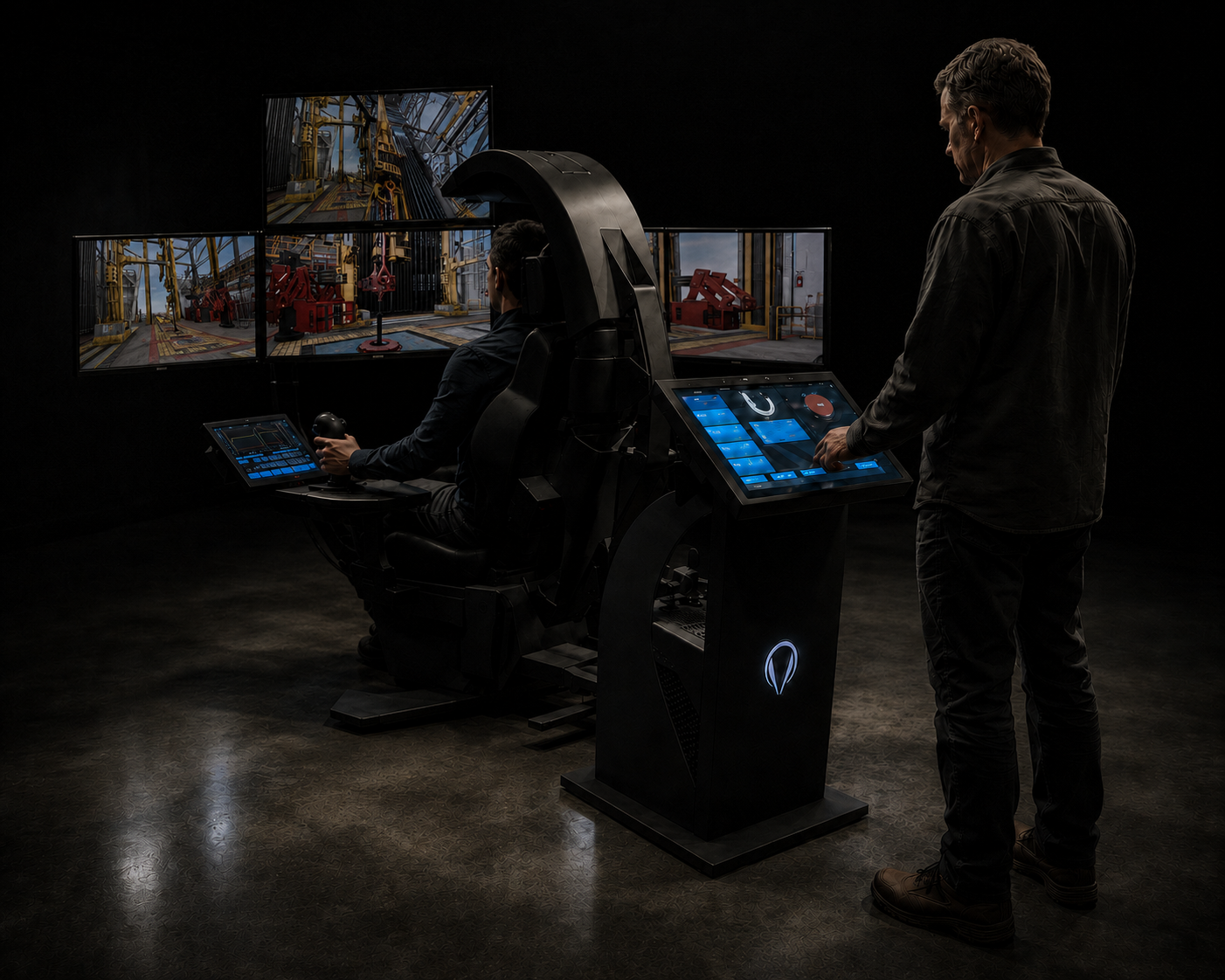

Instructor monitoring an X2 simulator with three lower screens and one upper screen

SPECIFICATIONS

Technical Specifications

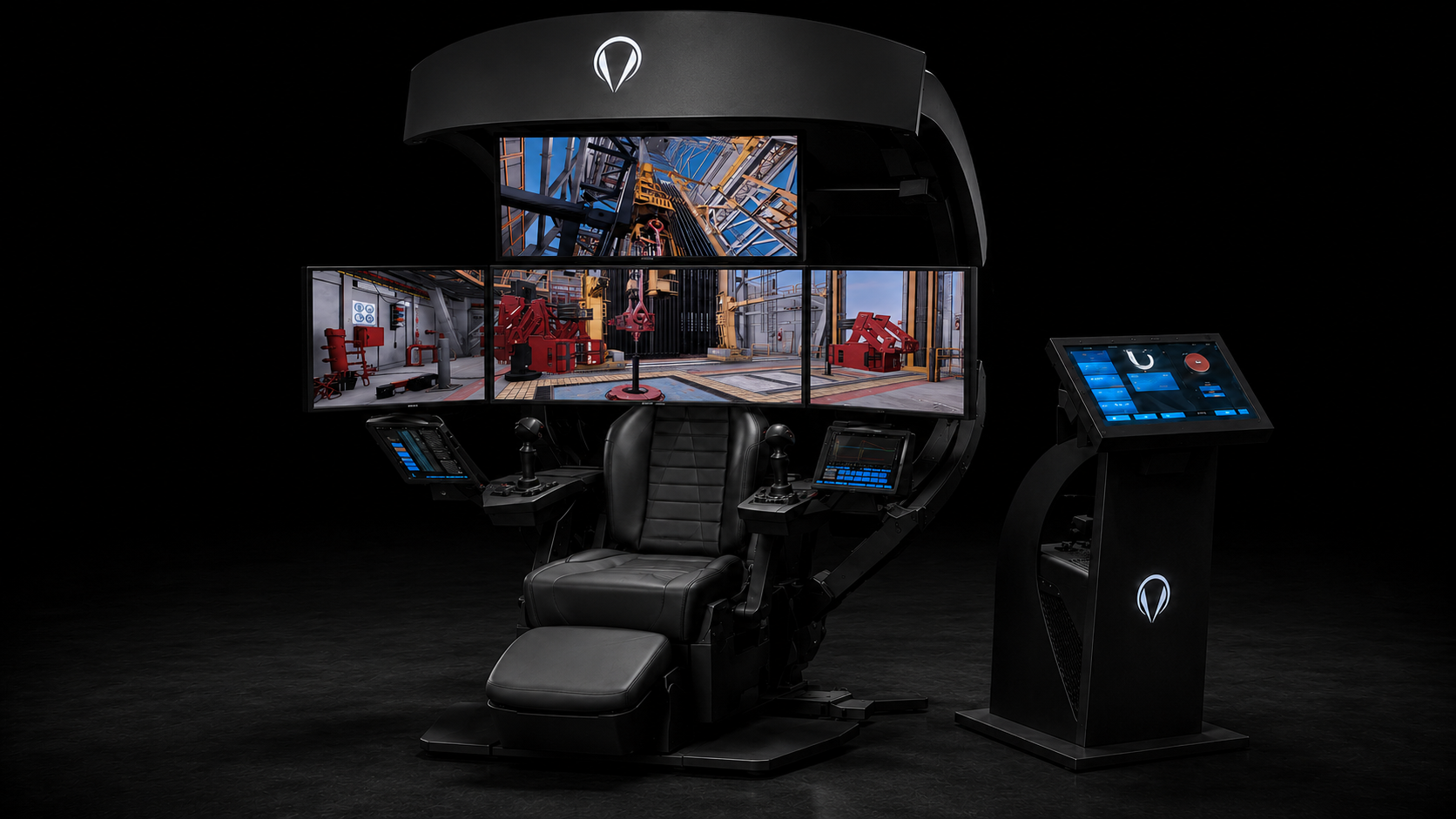

→ Download X2 Datasheet Front view of the Endeavor X2 four-display monitor configuration

Package & Configuration

Component	Details
Operator Station	Cyber chair with motorized retractable monitor arm
Visual System	Four 27-inch monitors: 5760 × 1080 rig floor + 1920 × 1080 mast
Operator Interfaces	Twin armrest touchscreens, proportional joysticks, switches, and buttons
Included Systems	Simulation PC, 8-port network switch, backup power, equipment enclosure, and cable bundle

Cyber Chair & Controls

Component	Specification
Dimensions	1473 mm W × 1542 mm D × 1568 mm H
Station Mass	125 kg
Touchscreens	2736 × 1824 resolution with 10-point multi-touch
Chair & Controls	Motorized recline to 35°; armrests, leg rest, headrest, joysticks, buttons, and switches

Infrastructure & Options

Component	Specification
Network	IPv4/IPv6 support; 10/100/1G Ethernet
Power	100–240 V, 50/60 Hz; auto-sensing power supply
Environment	0–40°C operating range; 15–80% humidity; 3,000 m maximum altitude
Options	Remote choke panel and instructor kiosk with PC and 27-inch touchscreen
Shipping	1600 mm W × 1378 mm D × 1600 mm H; 218 kg

Warranty: one year standard. Annual or three-year maintenance contracts available.

X2 Immersive Simulator
